MssEdge 20

外形尺寸

●220mm(W)*200mm(D)*44mm(H)

同步功能

Synch(clock): G.8261/G.8262/G.813

Ext clock: 2MBits/2MHz(可选)

Line clock: FE/GE

Ext time: 1PPS+TOD(可选)

网络保护

Line : G.8131,GE/FE 1:1

Dual homing

业务类型

Ethernet: E(V)P-Line, E(V)P- LAN, E(V)P-Tree

ETH:GE o/e, FE o/e

TDM: E1(SAToP) (可选)

OAM

Ethernet: IEEE802.3ah,

IEEE802.1ag + Y.1731

MPLS-TP: G.8113.1

QoS

Diffserv: RFC2697,RFC2698

Scheduling: WFQ, SP, WRED

Bandwidth Management

ACL control list

MAC Access Control

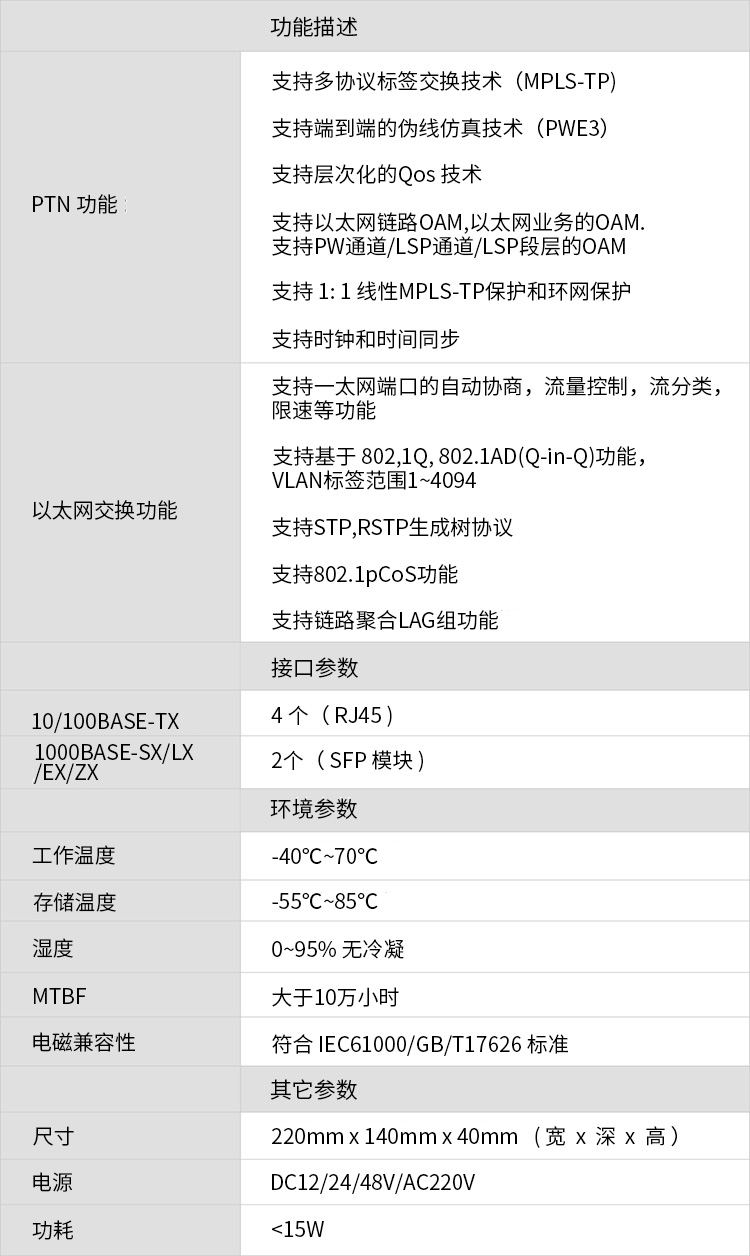

产品参数
